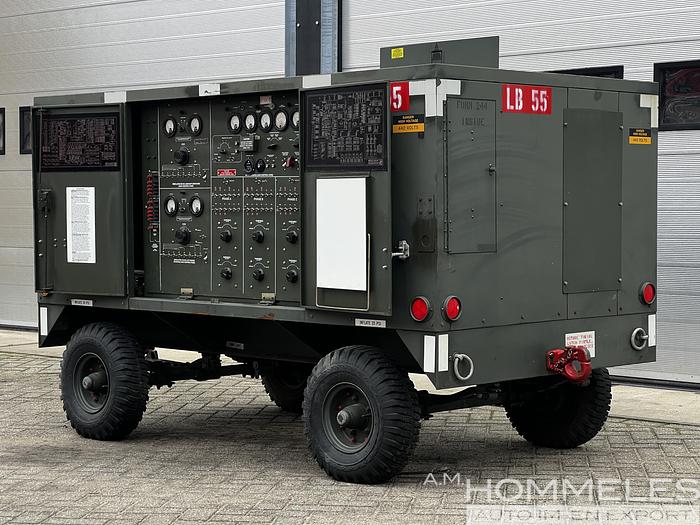

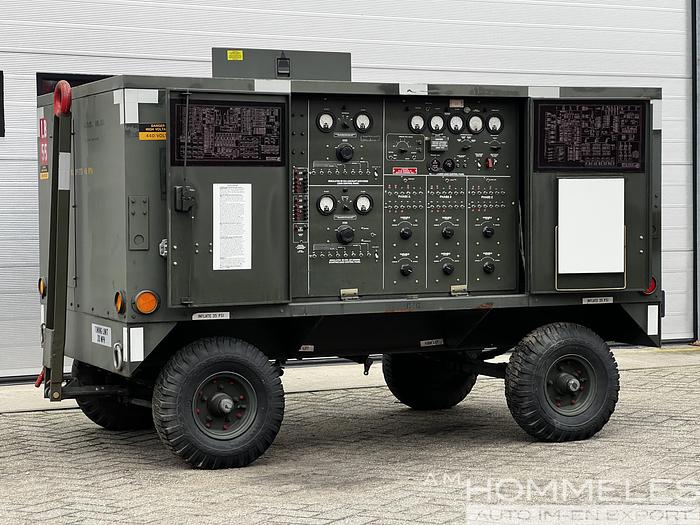

LOAD BANK TYPE A/M24T-8

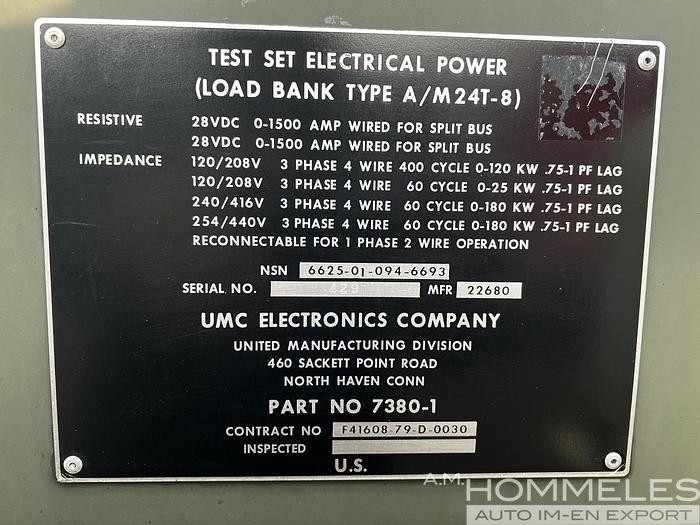

The Load Bank Type A/M24T-8, manufactured by UMC Electronics Company, is a used airport equipment specifically designed for aircraft ground support. It serves as a test set for electrical power, featuring robust capabilities to handle various voltage and cycle requirements. It supports 28VDC operations with a current range of 0-1500 amps, wired for a split bus configuration. For three-phase operations, it accommodates 120/208V at both 400 cycles with a power output of up to 120KW and at 60 cycles with a power output of up to 25KW. Additionally, it can handle 240/416V and 254/440V configurations at 60 cycles, supporting a power output of up to 180KW. Flexibility is enhanced by its ability to be reconnected for single-phase, two-wire operations, making it versatile for various ground power unit applications. With National Stock Number (NSN) 6625-01-094-6693 and part number 7380-1, this load bank offers precise and reliable power testing capabilities for airport ground support environments.

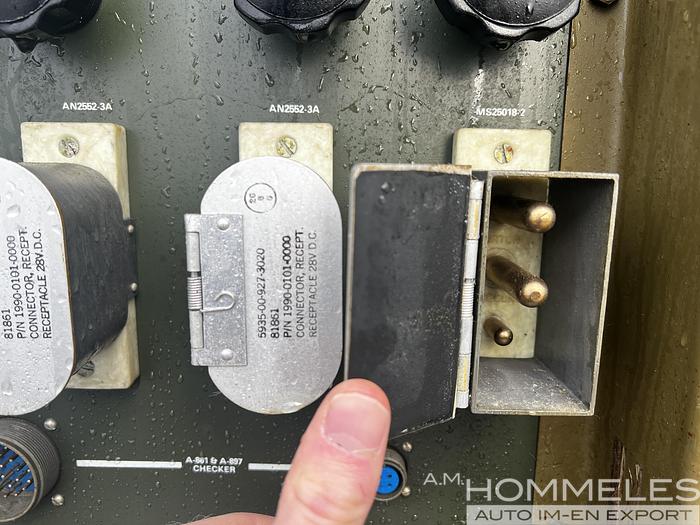

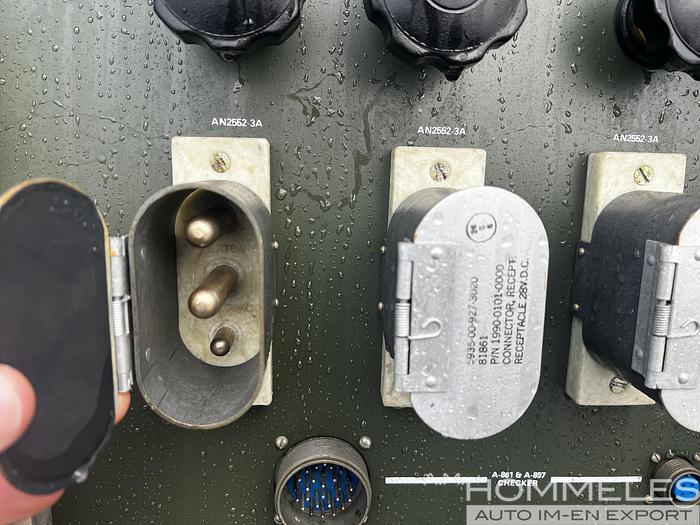

28VDC : 0-1500 AMP WIRED FOR SPLIT BUS

28VDC : 0-1500 AMP WIRED FOR SPLIT BUS

120/208V : 3 PHASE 4 WIRE 400 CYCLE 0-120KW

120/208V : 3 PHASE 4 WIRE 60 CYCLE 0-25KW

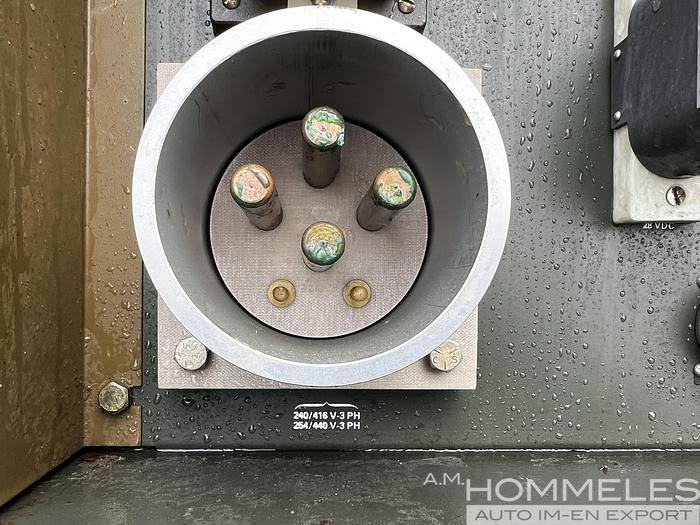

240/416V : 3 PHASE 4 WIRE 60 CYCLE 0-180KW

254/440V : 3 PHASE 4 WIRE 60 CYCLE 0-180KW

RECONNECTABLE FOR 1 PHASE 2 WIRE OPERATION
